IRS26302DJ
Application Information and Additional Details
Information regarding the following topics are included as subsections within this section of the datasheet.
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
IGBT/MOSFET Gate Drive
Switching and Timing Relationships
Deadtime
Matched Propagation Delays
Input Logic Compatibility
Undervoltage Lockout Protection
Shoot-Through Protection
Enable Input
Fault Reporting and Programmable Fault Clear Timer
Over-Current Protection
Over-Temperature Shutdown Protection
Truth Table: Undervoltage lockout, ITRIP, and ENABLE
Diagnostics
Advanced Input Filter
Short-Pulse / Noise Rejection
Integrated Bootstrap Functionality
Bootstrap Power Supply Design
Separate Logic and Power Grounds
Tolerant to Negative V S Transients
PCB Layout Tips
Integrated Bootstrap FET limitation
Additional Documentation
IGBT/MOSFET Gate Drive

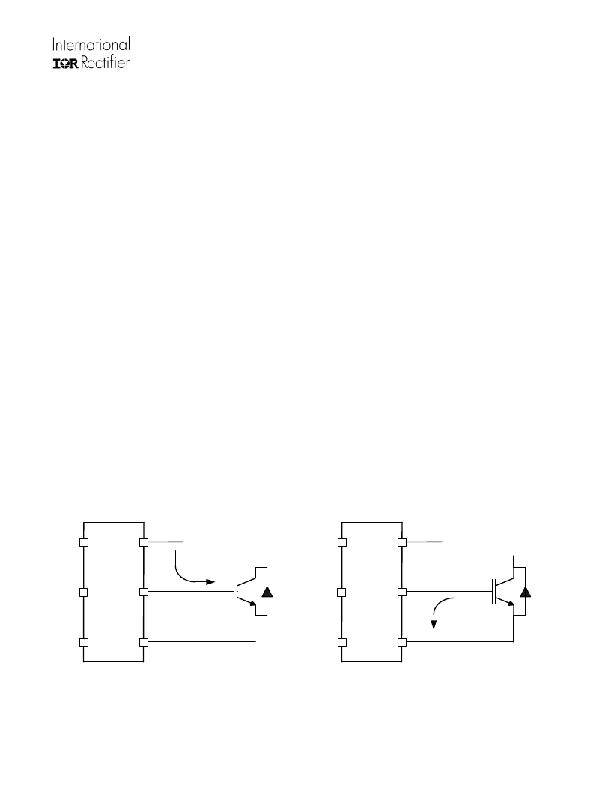

The IRS26302DJ HVICs are designed to drive MOSFET or IGBT power devices. Figures 1 and 2 illustrate several
parameters associated with the gate drive functionality of the HVIC. The output current of the HVIC, used to drive the
gate of the power switch, is defined as I O . The voltage that drives the gate of the external power switch is defined as
V HO for the high-side power switch and V LO for the low-side power switch; this parameter is sometimes generically
called V OUT and in this case does not differentiate between the high-side or low-side output voltage.
V B
(or V CC )
HO
I O+
V B
(or V CC )
HO
(or LO)
V S
+
V HO (or V LO )
-
(or LO)
V S
I O-
(or COM)
Figure 1: HVIC sourcing current
www.irf.com
16
(or COM)
Figure 2: HVIC sinking current
? 2009 International Rectifier
